Question 1
See the specification below:

The test design technique Elementary Comparison Test has been used with coverage type decision points with modified condition/decision coverage.

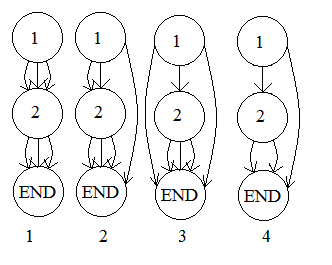

Which is the corresponding graph?

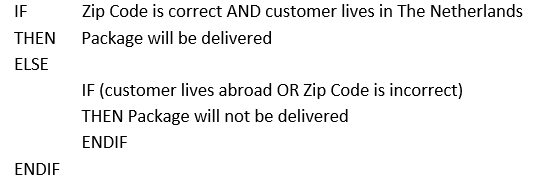

See the specification below:

The test design technique Elementary Comparison Test has been used with coverage type decision points with modified condition/decision coverage.
Which is the corresponding graph?

See the specification below:
A specification has parameters A, B, and C.
A and B each have 3 equivalence classes and C has 2 equivalence classes.
What is the minimum number of test situations that is generated if the coverage type Pairwise Testing is used?
During a project, a number of scrum teams delivers tested units(programs), which are subsequently integrated and tested in a traditional way.
In which test environment are the units (traditionally) tested first after integration of the units?
Why is it essential to define a correct central starting point?
See the image below.
In order to test launch groceries logical test causes must be created based on the Data Combination Test. It has been agreed to use an average depth test. This means that Pairwise Testing will be applied on all data:

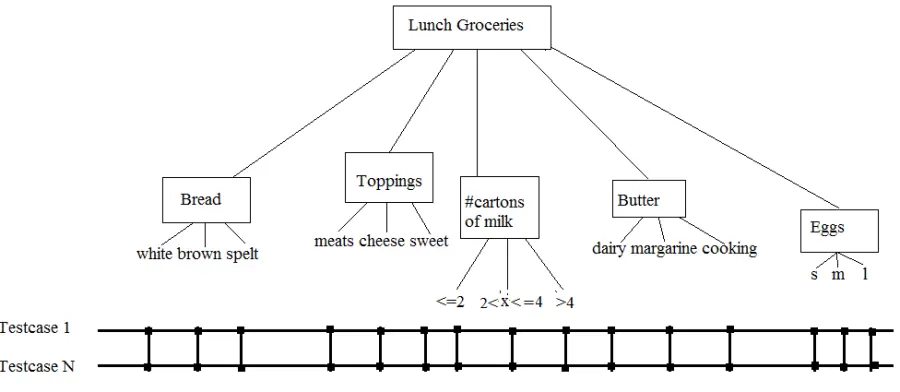

Test cases are designed using the classification tree below:

What is the minimum number of test cases that will be generated when using the Pairwise Testing technique? (What is 'N' as a minimum?)
What is essential in an agile development process for a quality-driven approach?
