The correct answers are C and D.

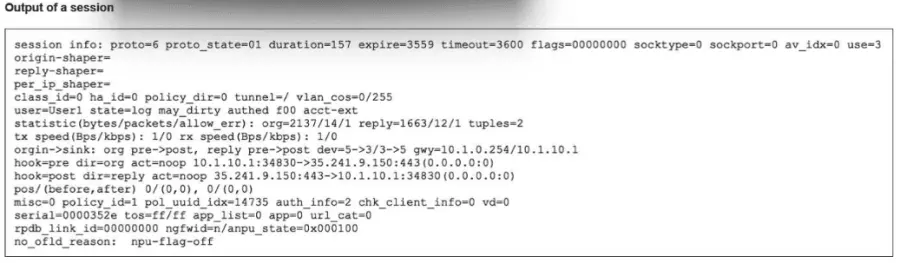

For D, the session output shows proto=6, which means TCP, and proto_state=01. The study guide explains that for TCP sessions, ''the first number (from left to right) is related to the server-side state and is 0 when the session is not subject to any inspection (flow or proxy). ... The second digit is the client-side state.'' It also shows that value 1 = ESTABLISHED

So proto_state=01 means:

first digit 0 = no inspection

second digit 1 = ESTABLISHED

That confirms the TCP session has been successfully established.

For C, the study guide section ''Session for an Authenticated User'' states: ''Any session for traffic coming from an authenticated user contains the authed flag. Additionally, the username is added to the session information.''

In the exhibit, the session contains user=User1 and an authentication state flag (authd), which indicates the session is associated with an authenticated user.

Why the other options are wrong:

A is wrong because the session did match a firewall policy. The study guide says the session output includes ''The ID of the matching policy'' In the exhibit, the session shows policy_id=1, so a firewall policy was matched.

B is wrong because the study guide explains the gwy field as:

first value = gateway to destination

second value = gateway to source The exhibit shows gwy=10.1.0.254/10.1.10.1, so:

gateway to destination = 10.1.0.254

gateway to source = 10.1.10.1

So the verified answers are: C, D.

The diagnose debug authd fsso server command is the primary tool for troubleshooting communication between the FortiGate and the FSSO Collector Agent. This debug output reveals the status of the connection and the reasons for failure. The three most common connectivity issues identified by this debug are:

FortiGate cannot reach the IP address of the collector agent (Option C): The debug will show connection timeouts or 'host unreachable' errors if the Layer 3 connectivity is missing.

The connection was refused / Port mismatch (Option B): If the FortiGate can reach the IP but the Collector Agent is not listening on the specified port (default 8000), the debug will display 'Connection refused.' This often happens if the port configured on the FortiGate does not match the listening port on the agent.

The pre-shared key does not match (Option D): If the IP and Port are correct, the next step is authentication. If the password configured on the FortiGate does not match the one on the Collector Agent, the debug will explicitly show an 'Authentication failed' or 'password mismatch' error during the handshake.

Note on other options: Option A (SSL) is less common than basic connectivity/auth mismatches. Option E (Group filters) relates to user processing logic, which occurs after connectivity is established.

FortiGate Security 7.6 Study Guide (FSSO Troubleshooting): 'Troubleshooting FSSO... Check connectivity (IP/Port) and authentication (Password).'

The correct answer is C.

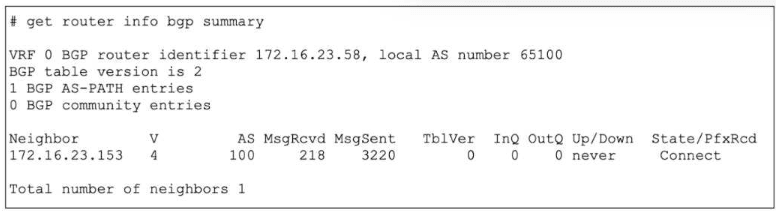

The exhibit shows the neighbor state as Connect in the State/PfxRcd column. The study guide explains the BGP states exactly as follows:

''Connect: Waiting for a successful three-way TCP connection''

''OpenSent: Waiting for an OPEN message from the peer''

''Established: Peers have successfully exchanged OPEN and keepalive messages''

Because the router is still in Connect state, the TCP three-way handshake has not completed yet. In practical terms, the local router has sent the TCP SYN but has not successfully received the SYN/ACK needed to complete the handshake. That is why C is correct.

Why the other options are wrong:

A is wrong because the message counters alone do not prove that the neighbor is unreachable. The study guide says the State/PfxRcd field shows the BGP state when the session is not established, and here that state is specifically Connect

B is wrong because waiting for an OPEN message happens in OpenSent, not Connect

D is not the best answer for this output. The study guide ties the displayed state directly to the protocol phase: Connect means the device is still waiting for a successful TCP handshake

So the verified answer is: C.

The correct answer is A.

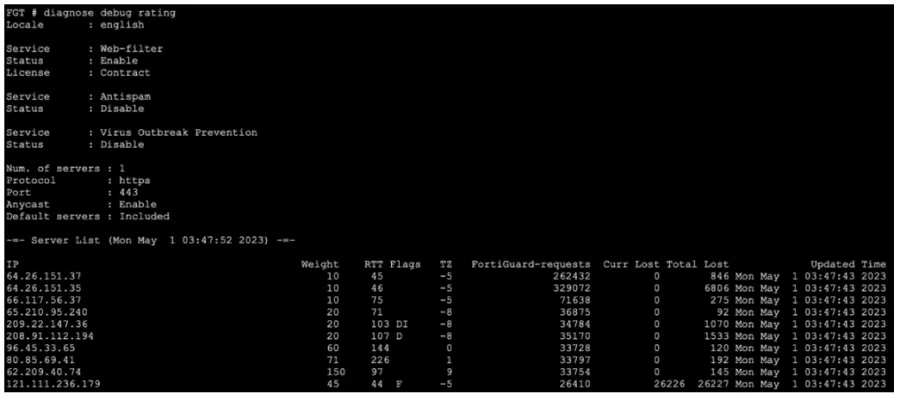

The study guide explicitly explains the diagnose debug rating table and says that for each server IP, the output shows ''The round trip delay''

That means the RTT value represents the time it takes for FortiGate to send a request and receive the reply from that FortiGuard server.

The FortiOS administration guide also confirms this by stating:

''Each server is probed for Round Trip Time (RTT) every two minutes.''

Why the other options are wrong:

B is wrong because packet loss is shown separately by Curr Lost and Total Lost, while RTT is the round-trip delay

C is wrong because license-validation behavior is indicated by flags such as I = Initial, not by the RTT value itself

D is wrong because the documents do not say RTT starts at a fixed value of 10; it is measured dynamically as round-trip delay

So the verified answer is: A.

The correct answers are A and D.

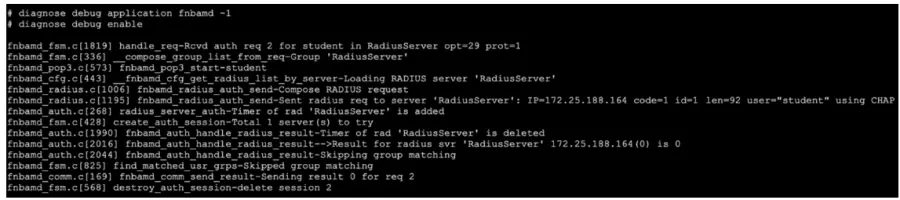

The debug output shows:

Sent RADIUS req to server 'RadiusServer': IP=172.25.188.164 ... user='student' using CHAP

Result for radius svr 'RadiusServer' 172.25.188.164(0) is 0

Sending result 0 for req 2

The study guide explains that in RADIUS real-time debug, FortiGate shows the IP address of the RADIUS server it is querying. In the example, it says FortiGate ''creates an access request to the RADIUS server at IP address 10.0.13.130'' and shows the line Sent radius req to server ... IP=10.0.13.130

So in your exhibit, the queried server is clearly 172.25.188.164, which makes A correct.

The study guide also states:

''The message fnbamd_comm_send_result-Sending result 0 indicates that the authentication was successful and that FortiGate received the Access-Accept message.''

Since your exhibit also ends with Sending result 0, that makes D correct.

Why the other options are wrong:

B is wrong because result 0 means authentication successful, not failed

C is wrong because the debug explicitly shows using CHAP, and the study guide lists supported RADIUS schemes as CHAP, PAP, MS-CHAP, and MS-CHAPv2

E is wrong because the study guide says two-factor authentication would involve an Access-Challenge response: ''If two-factor authentication is enabled on the server, the response is an Access-Challenge message''Your exhibit shows successful result 0 / Access-Accept, not a challenge.

So the verified answers are: A, D.

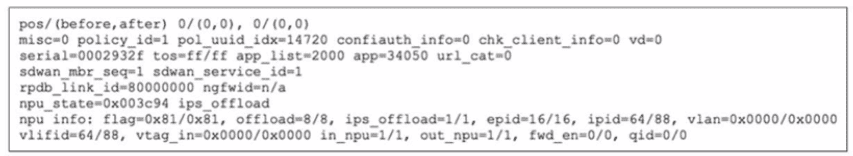

The correct answers are B and C. The session table output clearly shows policy_id=1, which means the traffic matched firewall Policy ID 1. That directly validates option B. The output also shows NPU-related offload indicators, including npu_state=... ips_offload and npu info: ... offload=8/8, ips_offload=1/1. These fields indicate that the session has been offloaded to hardware, so option C is correct. The study guide explains that FortiGate can offload sessions to network processors after session establishment, allowing subsequent packets to bypass normal CPU/kernel processing for improved performance. It also states that offloaded sessions are handled by the network processor rather than the CPU path.

Option A is too specific and is not proven by the exhibit. The output shows NPU offload, but it does not explicitly identify the hardware as NP7. Do not assume NP7 unless the platform or output confirms it. Option D is wrong because the VLAN-related fields show vlan=0x0000/0x0000 and vtag_in=0x0000/0x0000, which means the traffic is not VLAN-tagged.

The exhibit showing the real-time LDAP debug output is not visible. LDAP issues typically involve authentication failures, connectivity problems, or configuration mismatches. Two actions to resolve an LDAP issue might include: verifying LDAP server connectivity and port accessibility, checking LDAP bind credentials, confirming proper LDAP search base configuration, validating LDAP schema or user/group mappings, or adjusting timeout values.

The SD-WAN 7.6 Enterprise Administrator Study Guide explicitly states: ''Firewall policies for SD-WAN traffic must reference SD-WAN zones and not individual members.''

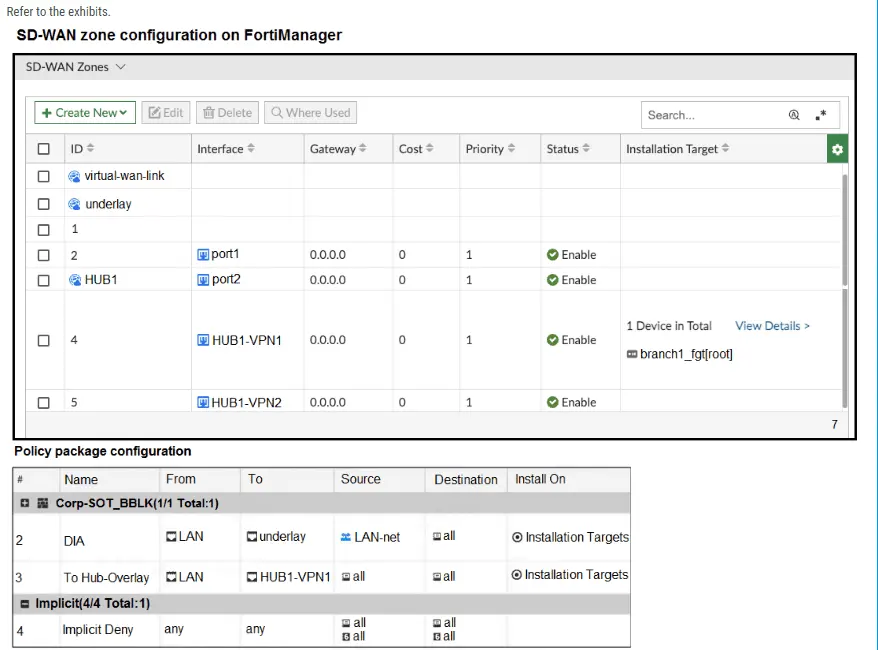

In the exhibit, HUB1-VPN1 is an individual member of the HUB1 SD-WAN zone. However, policy 3 incorrectly uses HUB1-VPN1 as its outgoing interface. FortiManager cannot compile and commit that policy because an SD-WAN member cannot be referenced directly by an SD-WAN firewall policy. The administrator must change the policy's To interface from HUB1-VPN1 to its parent zone, HUB1.

Option C is incorrect because the guide specifically explains that an IPsec interface does not require normalization when it is used as an SD-WAN member: ''SD-WAN members don't use normalized interfaces.'' The normalized LAN interface shown in the policy is appropriate because it maps the local interface for each managed FortiGate, but the overlay side must reference the HUB1 zone.

Option D remains invalid because it still references individual SD-WAN members. Option A does not correct the invalid outgoing-interface reference; policy 3 already uses the policy package installation targets.
