Free Salesforce Certified MuleSoft Platform Architect MuleSoft-Platform-Architect-I Exam Questions

Correct Answe r: System Layer

The APIs used in an API-led approach to connectivity fall into three categories:

System APIs -- these usually access the core systems of record and provide a means of insulating the user from the complexity or any changes to the underlying systems. Once built, many users, can access data without any need to learn the underlying systems and can reuse these APIs in multiple projects.

Process APIs -- These APIs interact with and shape data within a single system or across systems (breaking down data silos) and are created here without a dependence on the source systems from which that data originates, as well as the target channels through which that data is delivered.

Experience APIs -- Experience APIs are the means by which data can be reconfigured so that it is most easily consumed by its intended audience, all from a common data source, rather than setting up separate point-to-point integrations for each channel. An Experience API is usually created with API-first design principles where the API is designed for the specific user experience in mind.

Correct Answe r: JSON threat protection

*****************************************

Fact: Technically, there are no restrictions on what policy can be applied in what layer. Any policy can be applied on any layer API. However, context should also be considered properly before blindly applying the policies on APIs.

That is why, this question asked for a policy that would LEAST likely be applied to a Process API.

From the given options:

>> All policies except 'JSON threat protection' can be applied without hesitation to the APIs in Process tier.

>> JSON threat protection policy ideally fits for experience APIs to prevent suspicious JSON payload coming from external API clients. This covers more of a security aspect by trying to avoid possibly malicious and harmful JSON payloads from external clients calling experience APIs.

As external API clients are NEVER allowed to call Process APIs directly and also these kind of malicious and harmful JSON payloads are always stopped at experience API layer only using this policy, it is LEAST LIKELY that this same policy is again applied on Process Layer API.

Correct Answe r: Create a bounded-context model for the system layer to closely match the backend data model, and add an anti-corruption layer to let the different bounded contexts cooperate across the system and process layers

*****************************************

>> Canonical models are not an option here as the organization has already put in efforts and created bounded-context models for Experience and Process APIs.

>> Anti-corruption layers for ALL APIs is unnecessary and invalid because it is mentioned that experience and process APIs share same bounded-context model. It is just the System layer APIs that need to choose their approach now.

>> So, having an anti-corruption layer just between the process and system layers will work well. Also to speed up the approach, system APIs can mimic the backend system data model.

Correct Answe r: Apply a JSON threat protection policy to all APIs to detect potential threat vectors

*****************************************

>> Usually, if the APIs are designed and developed for specific consumers (known consumers/customers) then we would IP Whitelist the same to ensure that traffic only comes from them.

>> However, as this scenario states that the APIs are publicly available and being used by so many mobile and web applications, it is NOT possible to identify and blacklist all possible bad actors.

>> So, JSON threat protection policy is the best chance to prevent any bad JSON payloads from such bad actors.

CloudHub Object Store v2 is a managed key-value store provided by MuleSoft to support various use cases where temporary data storage is required. Here's why Option D is correct:

Key Length Support: Object Store v2 allows storage of keys with a length of up to 300 characters, making it suitable for applications needing flexible and descriptive keys.

Limitations on Size:

Object Store v2 is not intended for large payload storage and has a recommended size limit below 10 MB for each value. Payloads exceeding 15 MB may cause performance issues and are better suited to a file storage system or database.

Option B is incorrect because storing payloads above 15 MB exceeds Object Store's optimal usage specifications.

Key-Value Limits: Object Store v2 is designed for moderate, transient storage needs, and does not support unlimited storage. Thus, Option A is incorrect.

Backward Compatibility: Object Store v2 does not support Mule 4 applications running Object Store v1. Option C is incorrect as Object Store v1 and v2 are distinct.

Reference For more on CloudHub Object Store v2, refer to MuleSoft documentation on Object Store limitations and configuration.

Correct Answe r: Process Layer

*****************************************

>> Experience layer is dedicated for enrichment of end user experience. This layer is to meet the needs of different API clients/ consumers.

>> System layer is dedicated to APIs which are modular in nature and implement/ expose various individual functionalities of backend systems

>> Process layer is the place where simple or complex business orchestration logic is written by invoking one or many System layer modular APIs

So, Process Layer is the right answer.

Understanding Spike Control and Rate Limiting Policies:

Spike Control Policy: Limits the number of requests processed by the API in a short time to handle sudden bursts of traffic. It does not queue requests but rejects any request that exceeds the allowed burst rate.

Rate Limiting Policy: Sets a limit on the number of requests that an API can handle within a given timeframe. Once the limit is reached, additional requests are rejected.

Evaluating the Options:

Option A: Incorrect. In both Spike Control and Rate Limiting policies, requests are rejected once the limit is reached. Spike Control does not queue requests; it only controls the burst rate by rejecting excessive requests.

Option B (Correct Answer): In a clustered environment, each node independently enforces the Rate Limiting and Spike Control policies, meaning that the limits apply to each node separately. This ensures that each node can control its own resource usage independently within the cluster.

Option C: This is partially correct, as Rate Limiting is often used to protect Experience APIs, but Spike Control could also be useful in limiting resource consumption under high burst conditions.

Option D: Incorrect. Although a contract is required to enforce client-specific policies, Rate Limiting and Spike Control do not require a contract to function for general traffic control.

Conclusion:

Option B is the correct answer because, in a clustered environment, Rate Limiting and Spike Control policies apply separately to each node, helping each instance to manage its own load.

For more information, refer to MuleSoft's documentation on applying Rate Limiting and Spike Control policies in a clustered environment.

Correct Answe r: They provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.

*****************************************

In API-led connectivity,

>> Experience APIs - allow for innovation at the user interface level by consuming the underlying assets without being aware of how data is being extracted from backend systems.

>> Process APIs - compose data from various sources and combine them with orchestration logic to create higher level value

>> System APIs - reduce the dependency on the underlying backend systems by helping unlock data from backend systems in a reusable and consumable way.

However, they NEVER promise that they provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.

https://dzone.com/articles/api-led-connectivity-with-mule



Correct Answe r: Implement different system APIs named createCustomer, amendCustomer, retrieveCustomer and suspendCustomer as they are modular and has seperation of concerns

*****************************************

>> It is quite normal to have a single API and different Verb + Resource combinations. However, this fits well for an Experience API or a Process API but not a best architecture style for System APIs. So, option with just one customerManagement API is not the best choice here.

>> The option with APIs in createCustomerInCRMZ format is next close choice w.r.t modularization and less maintenance but the naming of APIs is directly coupled with the legacy system. A better foreseen approach would be to name your APIs by abstracting the backend system names as it allows seamless replacement/migration of any backend system anytime. So, this is not the correct choice too.

>> createCustomer, amendCustomer, retrieveCustomer and suspendCustomer is the right approach and is the best fit compared to other options as they are both modular and same time got the names decoupled from backend system and it has covered all requirements a System API needs.

Correct Answe r: The API consumer creates an API client, which sends API invocations to an API such that they are processed by an API implementation

*****************************************

Terminology:

>> API Client - It is a piece of code or program the is written to invoke an API

>> API Consumer - An owner/entity who owns the API Client. API Consumers write API clients.

>> API - The provider of the API functionality. Typically an API Instance on API Manager where they are managed and operated.

>> API Implementation - The actual piece of code written by API provider where the functionality of the API is implemented. Typically, these are Mule Applications running on Runtime Manager.

Correct Answe r: It makes API Manager aware of API implementations and hence enables it to enforce policies.

*****************************************

>> API Autodiscovery is a mechanism that manages an API from API Manager by pairing the deployed application to an API created on the platform.

>> API Management includes tracking, enforcing policies if you apply any, and reporting API analytics.

>> Critical to the Autodiscovery process is identifying the API by providing the API name and version.

https://docs.mulesoft.com/api-manager/2.x/api-auto-discovery-new-concept

https://docs.mulesoft.com/api-manager/1.x/api-auto-discovery

https://docs.mulesoft.com/api-manager/2.x/api-auto-discovery-new-concept

Security Guidelines Overview:

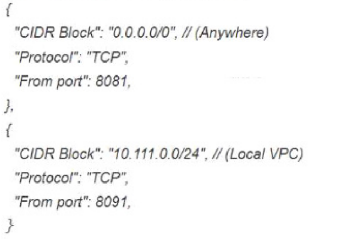

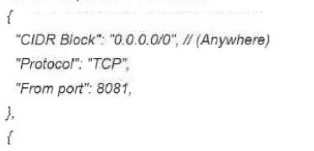

The production environment is hosted on a dedicated Virtual Private Cloud (VPC) on CloudHub 1.0, with a specific requirement from the security team that no traffic should occur over HTTP. This implies that only secure HTTPS traffic should be permitted, and HTTP access (port 8081, the default HTTP port in Mule applications) should be disabled.

Evaluating the Options:

Option A (Correct Answer): Configuring the HTTPS protocol in the HTTP listener in the Mule application ensures that all traffic is encrypted and occurs over HTTPS (port 8092 by default for HTTPS on Mule applications). This directly aligns with the security guideline to prevent unencrypted HTTP traffic.

Option B: Creating a custom policy for incoming and outgoing HTTP requests could provide some control over access, but it does not enforce the use of HTTPS exclusively. This option does not disable HTTP traffic and, therefore, does not meet the guideline effectively.

Option C (Correct Answer): Removing the entry for HTTP (port 8081) in the VPC firewall rule ensures that HTTP traffic is completely blocked at the firewall level. This prevents any HTTP requests from reaching the application, adding a layer of security that complies with the guidelines.

Option D: The IP Blocklist policy controls access based on IP addresses but does not enforce the use of HTTPS. This policy does not address the specific requirement of preventing HTTP traffic.

Option E: Adding a firewall rule entry for HTTP (port 8081) would enable HTTP traffic, which directly contradicts the security guidelines. Therefore, this option should be avoided.

Conclusion:

Option A and Option C are the correct choices. Configuring the HTTPS protocol in the Mule application's HTTP listener ensures that only HTTPS traffic is allowed, and removing the firewall rule for HTTP (port 8081) blocks any HTTP traffic from reaching the application. Together, these options enforce secure traffic as required by the security guidelines.

Refer to MuleSoft documentation on configuring HTTP listeners and managing VPC firewall rules for further details on implementing these security controls.

Correct Answe r: Unit tests (Whitebox)

*****************************************

As per general IT testing practice and MuleSoft recommended practice, Integration and Performance tests should be done on full end to end setup for right evaluation. Which means all end systems should be connected while doing the tests. So, these options are OUT and we are left with Unit Tests and Functional Tests.

As per attached reference documentation from MuleSoft:

Unit Tests - are limited to the code that can be realistically exercised without the need to run it inside Mule itself. So good candidates are Small pieces of modular code, Sub Flows, Custom transformers, Custom components, Custom expression evaluators etc.

Functional Tests - are those that most extensively exercise your application configuration. In these tests, you have the freedom and tools for simulating happy and unhappy paths. You also have the possibility to create stubs for target services and make them success or fail to easily simulate happy and unhappy paths respectively.

As the scenario in the question demands for API implementation to be tested before deployment to Staging and also clearly indicates that there is enough/ sufficient amount of mock data to test the various components of API implementations with no active connections to the backend systems, Unit Tests are the one to be used to incorporate this mocked data.

Understanding API Functional Monitoring:

API Functional Monitoring is a feature within MuleSoft's Anypoint Platform that enables users to monitor the health and performance of APIs and endpoints by running functional tests at scheduled intervals.

It checks whether APIs are functioning as expected by running test calls and then evaluating if the response meets the desired conditions. This is particularly useful for testing endpoint availability, checking for specific data in responses, and measuring API performance over time.

Component Features:

Scheduled Intervals: Functional monitoring allows configuring tests to run at regular intervals, such as every minute, hour, or day, depending on the monitoring requirements.

Reports on Test Pass/Fail Status: After each test run, API Functional Monitoring reports whether the API passed or failed the test conditions.

Performance Statistics: It displays metrics like average response time, success rate, and error rates, giving insights into API health and performance.

Evaluating the Options:

Option A (API Analytics): API Analytics provides insights on API usage and metrics but does not involve scheduled tests for pass/fail status or endpoint health checks.

Option B (Anypoint Monitoring Dashboards): These dashboards display API metrics but do not actively test API endpoints or provide pass/fail reporting on a scheduled basis.

Option C (Correct Answer): API Functional Monitoring fits the description, as it is designed to monitor API and endpoint health with scheduled test runs and display statistics about performance.

Option D (Anypoint Runtime Manager Alerts): Runtime Manager alerts notify users of issues with application status but do not actively test endpoints at scheduled intervals.

Conclusion:

Option C (API Functional Monitoring) is the correct answer because it provides the necessary tools to test API functionality, monitor endpoint health, and display performance statistics in real-time.

Refer to MuleSoft documentation on API Functional Monitoring for further guidance on setting up and configuring these tests in Anypoint Platform.

Center for Enablement (C4E) KPIs:

A Center for Enablement (C4E) in MuleSoft focuses on enabling self-service and reuse by providing APIs that can be consumed across the organization. A key metric of success is how many consumers are utilizing the published APIs.

The number of consumers who have requested and received access to an API indicates the level of adoption and reuse, which aligns with the goals of a C4E.

Evaluating the Options:

Option A: This metric could indicate deployment automation, but it is not a direct measure of C4E's success in enabling API reuse and consumption.

Option B: Bandwidth usage per API implementation provides insight into API traffic but does not measure C4E enablement or consumer engagement.

Option C: The number of developers downloading an API specification can be an indicator of interest but does not confirm actual usage or enablement.

Option D (Correct Answer): The number of consumers who have requested and received access to an API in production is a key metric indicating API adoption and reuse, which aligns with C4E's goals.

Conclusion:

Option D is the correct answer as it provides a direct measure of consumer engagement and adoption, indicating the success of the C4E in promoting API usage across the organization.

Refer to MuleSoft's documentation on C4E KPIs and API usage metrics for additional insights.
