Free Citrix Virtual Apps and Desktops 7 Assessment. Design and Advanced Configurations 1Y0-403 Exam Questions

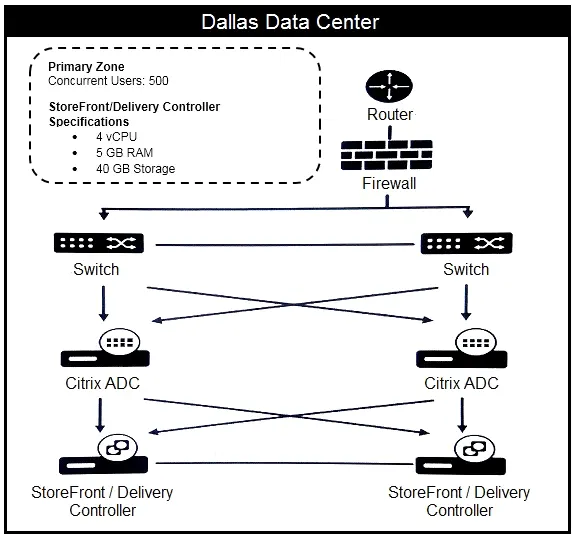

Scenario: A Citrix Architect is designing a single-Site Citrix Virtual Apps and Desktops production environment. Through earlier design discussions, the architect has determined the environment details listed in the exhibit

Click the Exhibit button to view the details.

What should the architect change in the current environment to align with Citrix leading practices?

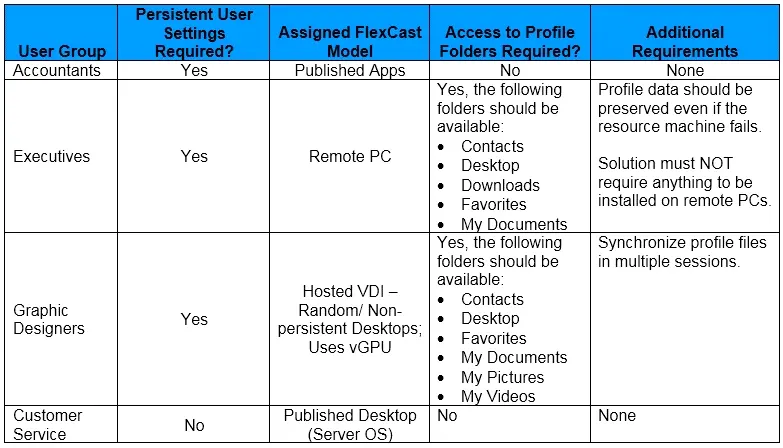

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The architect has identified the Resource Layer requirements shown in the exhibit.

Click the Exhibit button to view the requirements.

Which feature of Citrix Profile Management could help the architect address the Graphic Designers Group requirements?

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. While assessing the existing infrastructure, the architect determined that a number of users utilize legacy USB print devices that they will continue to need locally and within HDX sessions. The current HDX-optimized print virtual channel will NOT support these devices, so the architect decides that the Generic USB redirection channel should be used.

Which two factors must the architect consider when using Generic USB redirection? (Choose two.)

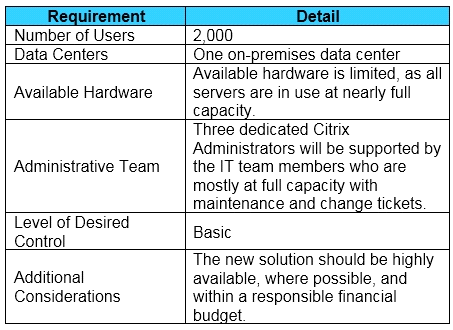

Scenario: A Citrix Architect is creating a conceptual architecture for a Citrix Virtual Apps and Desktops environment. Based on some initial the company's business goals and objectives, the architect has collected the information shown in the exhibit.

Click the Exhibit button to view the information.

Which delivery model should the architect recommend?

Scenario: A Citrix Architect is designing a pod-based architecture in a Citrix Virtual Apps and Desktops environment. The plan is to create three pods for different Resource Layer types:

- Windows 10 VDI (non-persistent)

- Windows Server 2016 hosted shared desktops (non-persistent)

- Windows 10 VDI (persistent)

Which three components can be shared between the three pods? (Choose three.)

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The Site will contain two Delivery Controllers. All machines are running on a single hypervisor platform. As part of the deployment, management has advised they want a database high-availability (HA) solution to protect the environment against the loss of a physical server.

Additional considerations for the SQL HA:

Downtime for Citrix administrative functions should be minimized.

Additional hardware or resources should be minimized.

Limited knowledge available to configure and maintain SQL infrastructure.

Which HA configuration should the architect use for this deployment?

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment.

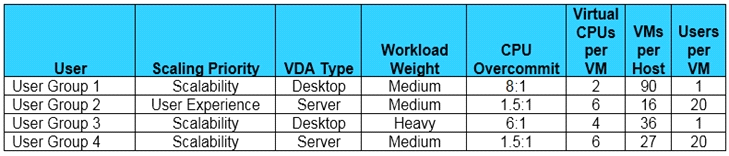

The table in the exhibit lists details about the requirements of the current user groups and their Virtual Delivery Agent (VDA) machine workloads.

Click the Exhibit button to view the table.

The architect should scale the hardware used to host the virtual machines (VMs) for User Group 1 to

cores. (Choose the correct option to complete the sentence.)

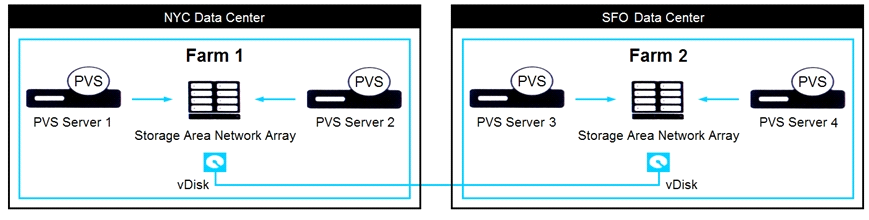

Scenario: A Citrix Architect is designing a multi-data center Citrix Virtual Apps and Desktops environment that will use Citrix Provisioning (PVS) to manage Virtual Delivery Agent (VDA) machine images. Each data center will have a separate PVS farm. During design discussions, the architect created a diagram to depict the way in which vDisk files will be replicated among PVS farms, based on the available storage for the vDisk stores.

Click the Exhibit button to view the diagram.

Overall, the customer has identified 3 objectives for the image-replication process:

Administrative time required to replicate images among farms must be minimized.

The process must be usable by storage administrators without PVS farm administrative permissions.

Pre-existing infrastructure and processes should be used where possible.

Which method should the architect use to replicate vDisk files among data centers?

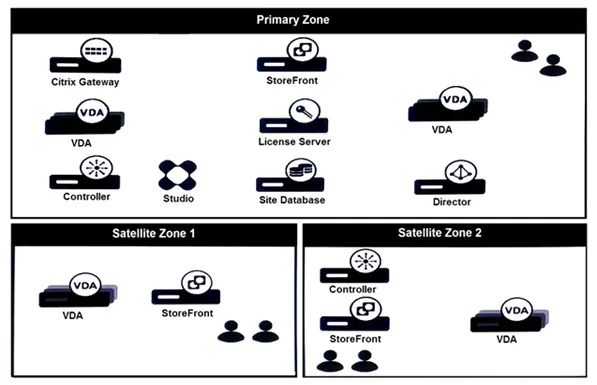

Scenario: A Citrix Architect needs to assess a Citrix Virtual Apps and Desktops environment. The Citrix Virtual Apps and Desktops diagram in the exhibit gives details about the current Site and zone design.

Click the Exhibit button to view the diagram.

Which statement is correct if the Delivery Controller in Satellite Zone 2 fails?

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment.

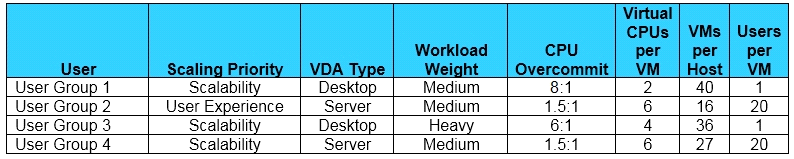

The table in the exhibit lists details about the requirements of the current user groups and their Virtual Delivery Agent (VDA) machine workloads.

Click the Exhibit button to view the table.

The architect should scale the hardware used to host the virtual machines (VMs) for User Group 1 to

cores. (Choose the correct option to complete the sentence.)
