Click the exhibit button.

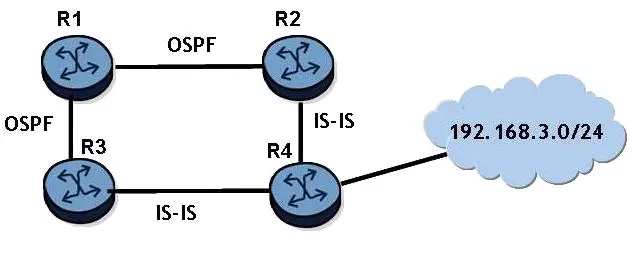

If router R2 redistributes the IS-IS route to 192.168.3.0/24 into OSPF, router R3 will receive two routes to 192.168.3.0/24. What will be the preference of these two routes? Assume that all IS-IS routers are L1/L2 capable and are in the same are
a. Choose two answers.
When redistributing OSPF into RIP V2 what must be taken into consideration for the redistribution to take place?
A BGP session is in OpenConfirm state. Which of the following messages must be received to transition to Established state?
Which of the following is NOT a goal of BGP routing policies?

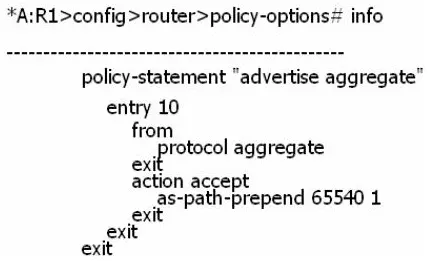

Router R1, in AS 65540, has the export policy shown below. It advertises an aggregate route to eBGP peer router R2 in 65550. What is the AS Path of the aggregate route received by router R2?
Which of the following statements concerning OSPFv3 is false?
Which of the following best describes downstream on demand label distribution?
Which of the following is TRUE when the explicit null is implemented?
What command could be used to verify proper configuration of a static route in an Nokia 7750 SR router?
Click the exhibit.

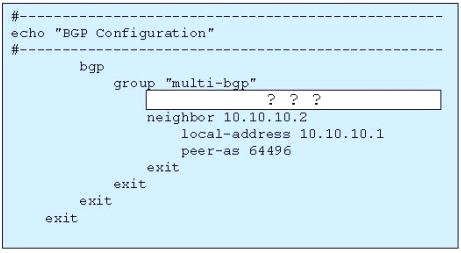

This PE is connected to an IPv4 core and is being configured to support 6VPE for a VPRN. Which of the following completes this section of the configuration?
Click the exhibit.
When router A receives the BGP update for the 192.168.0.1/27 prefix, it propagates it to routers B and C. What action is taken by router B when it receives the update?
Click the exhibit.

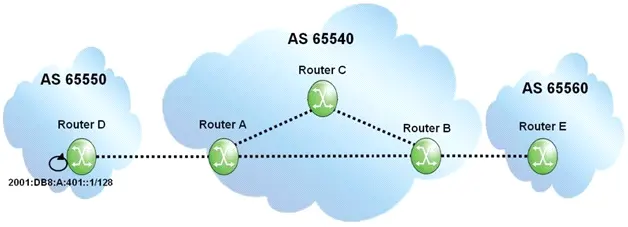

Assume all router-IDs are properly configured, and IPv6 link-local addresses are used to establish all eBGP sessions. Given the following iBGP configuration on router A, what is the Next Hop for prefix 2001:DB8:A:401::1/128 on router B?
When configuring distributed services across a network, it is considered best practice to configure which of the following parameters as globally significant?
Click the exhibit.

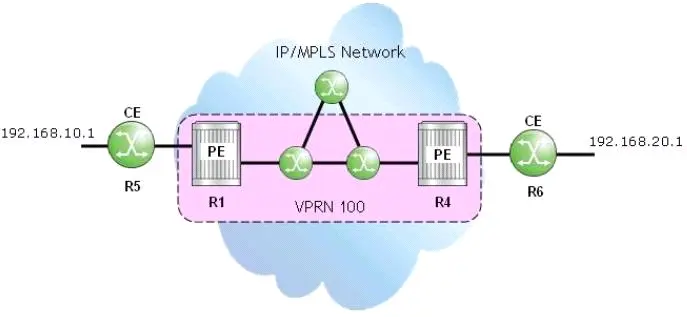

The CEs use BGP and export policies to advertise their local prefixes with the VPRN on their PEs. If the VPRN is functioning properly, which of the following commands will succeed when performed on router R1?
What is the source IP address in an OSPF update?
