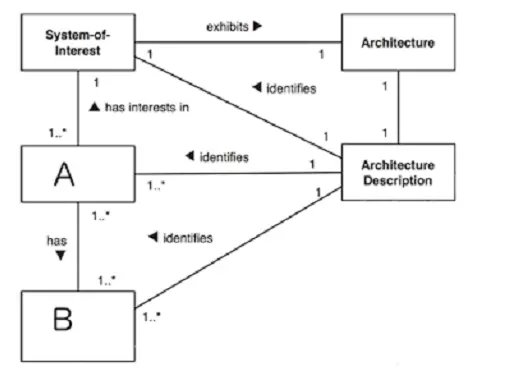

According to the conceptual model of architecture description from ISO/IEC 42010, an architecture view is a representation of a system from the perspective of a set of concerns. An architecture viewpoint is a specification of the conventions and rules for constructing and using an architecture view. A and B in the diagram correspond to these concepts respectively.

Comprehensive and Detailed in Depth

The Active Structure aspect of the ArchiMate Core Framework represents elements that perform behavior, such as business roles (e.g., employees, partners) and system software (e.g., databases, middleware).

Active structure elements are responsible for actions in an enterprise. The ArchiMate 3.2 Specification states that business roles and system software are part of the Active Structure aspect.

Archi User Guide

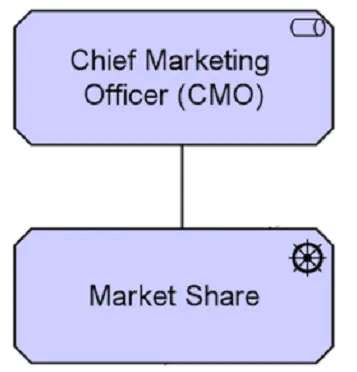

Based on the ArchiMate 3 documents or objectives, a business actor represents a business entity that is capable of performing behavior. A business actor is a business entity as opposed to a technical entity; i.e., it belongs to the Business Layer. The notation for a business actor is a circle with a stick figure inside it. The Chief Marketing Officer in this diagram is a business actor that performs the behavior assigned to the Marketing Manager role.

Comprehensive and Detailed in Depth

In ArchiMate, the Active Structure aspect represents elements that perform behavior and act upon other elements.

A Business Partner is an active entity that interacts with a business.

A Software Application is an Application Component, which belongs to the Active Structure aspect.

Server Hardware is part of the Technology Layer but still falls under the Active Structure category.

Since all three elements represent active entities performing tasks, they fall under Active Structure as per the ArchiMate 3.2 Specification.

Archi User Guide

According to the ArchiMate 3.2 Specification1, a driver represents an external or internal condition that motivates an organization to define its goals and implement the changes necessary to achieve them. Drivers that are associated with a stakeholder are often called ''concerns'' of that stakeholder. A stakeholder represents the role of an individual, team, or organization (or classes thereof) that represents their interests in the outcome of the architecture. A motivation element is an element that represents the reasons for designing and implementing an architecture, such as stakeholders, drivers, goals, principles, requirements, or value. A motivation element is denoted by a hexagonal shape.

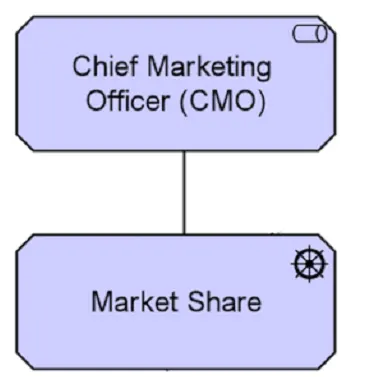

The diagram below shows a motivation element (driver) named Market Share that influences a stakeholder named CMO. The influence relationship is denoted by a dashed line with an open arrowhead.

The influence relationship means that the driver affects the stakeholder's interests or concerns. Therefore, the best interpretation of the diagram is that the CMO is motivated by the driver Market Share.

Comprehensive and Detailed in Depth

An Application Component is an active structure that represents software components performing behavior. Its passive counterpart is the Data Object, which represents structured information used or produced by applications.

Since Data Objects do not perform actions themselves but store, structure, or represent data, they are the correct counterpart to Application Components in the Application Layer.

This is clearly outlined in the ArchiMate 3.2 Specification, which states that Application Components act upon Data Objects.
