Free Cisco Implementing Cisco Advanced Call Control On-Premises 300-815 Exam Questions

Cisco SIP IP telephony is implemented on two floors of your company. Afterward, users report intermittent voice issues in calls established between floors. All calls are established, and sometimes they work well, but sometimes there is one-way audio or no audio. You determine that there is a firewall between the floors, and the administrator reports that it is allowing SIP signaling and UDP ports from 20000 to 22000 bidirectionally. What are two possible solutions? (Choose two.)

An engineer needs to deploy Cisco Extension Mobility. The engineer already activated the required services, configured the Extension Mobility Phone Service, and created an Extension Mobility device profile that is associated with end users. Which two additional steps are required to complete the configuration? (Choose two.)

Which two statements are correct with respect to the Client Matter Code setting in the route pattern configuration? (Choose two.)

A company with only 15 users needs to have a phone system without deploying dedicated servers for this purpose. Using the local Cisco router with Cisco UCME capabilities, which configuration is needed to support SIP phones?

An engineer is configuring a Cisco UCM solution. The requirements state that some users in one location will receive calls from a number during work hours 09AM to 5PM, and another group will get the calls from the same number outside this defined timeslot. Users will also change the outgoing number when reaching out to customers based on the same time-of-day routing rules. Which feature is needed to allow for this type of configuration?

Refer to the exhibit.

An administrator is troubleshooting a problem in which some outbound calls from an internal network to the Internet telephony service provider are not getting connected, but some others connect successfully. The firewall team found that some call attempts on port 5060 came from an unrecognized IP that has not been defined in the firewall rule. What should the administrator configure in the Cisco Unified Border Element to fix this issue?

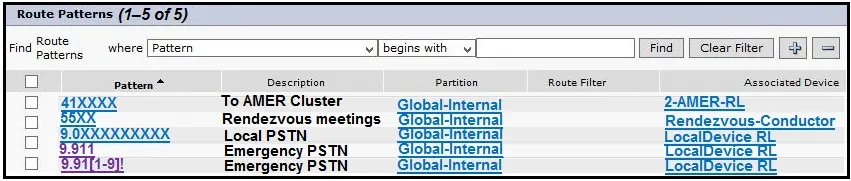

Refer to the exhibit.

Users report that when they dial the emergency number 9911 from any internal phone, it takes a long time to connect with the emergency operator. Which action resolves this issue?

A user reports that when they attempt to log out from the Cisco Extension Mobility service by pressing the Services button, they cannot log out. What is the most likely cause of this issue?

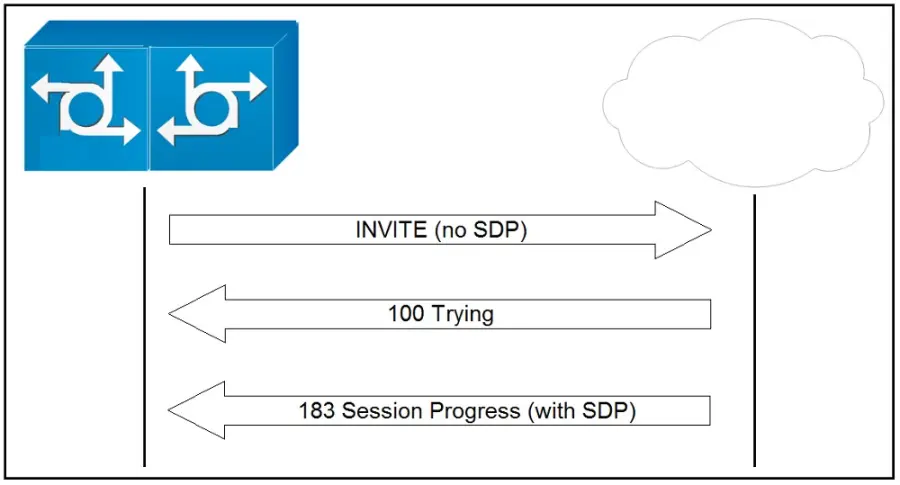

Refer to the exhibit.

An administrator is troubleshooting why users are not hearing audio when dialing long distance numbers across their Cisco Unified Border Element. The customer's carrier has a requirement that dialing long distance requires an access code to be entered. Looking at the exhibit, what two actions can be taken to correct signaling? (Choose two.)

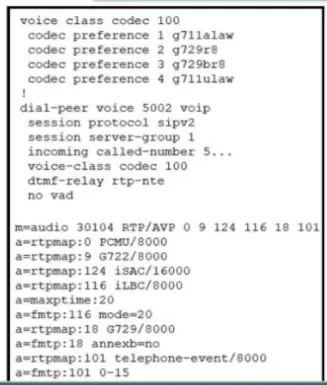

Refer to the exhibit.

The Cisco Unified Border Element receives an INVITE matching inbound dial peer 5002. The outbound dial peer supports only iLBC. and a Local Transcoding Interface is allocated. Based on the configuration and SDP from the INVITE message, which codec is chosen by Cisco Unified Border Element for the inbound call leg?

In Cisco Unified Communications Manager globalized call routing is implemented and must confirm that it is correctly implemented without making a call. Which tool do you use for verification?

Users in a small location report that audio calls work Tine, but only one video call works before the next one gets a busy signal. Three video conference rooms were recently installed by a third party. The audio and video devices are Cisco endpoints. The site uses video and audio calls, and a network investigation does not show saturation on the link The site is configured with QoS and CoS. All devices are registered on the headquarters Cisco UCM duster. What is the cause of this problem?

A company wants to optimize the ability to answer the phone for customers that call different departments. Each of the three departments consists of five people. The company needs a simple round-robin style queue for each department to ensure that the phone rings to a new person after four rings each. What is the most efficient configuration to meet this requirement?

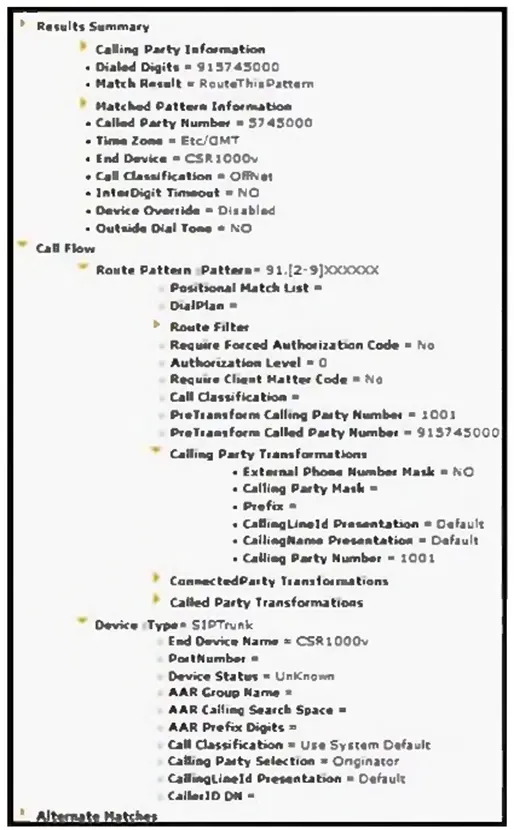

Refer to the exhibit.

Refer to the exhibit. An administrator troubleshoots an issue where each user's 4-digit directory number is presented as the calling number when dialing out to the PSTN. This 4-digit calling number prevents the external user from calling the internal user back. Which two actions must the administrator perform to resolve the issue? (Choose two.)

An engineer is troubleshooting Cisco Device Mobility and find that the phone has roamed to a building that is assigned to a different device pool but has not changed its device pool accordingly What action resolves the issue?
